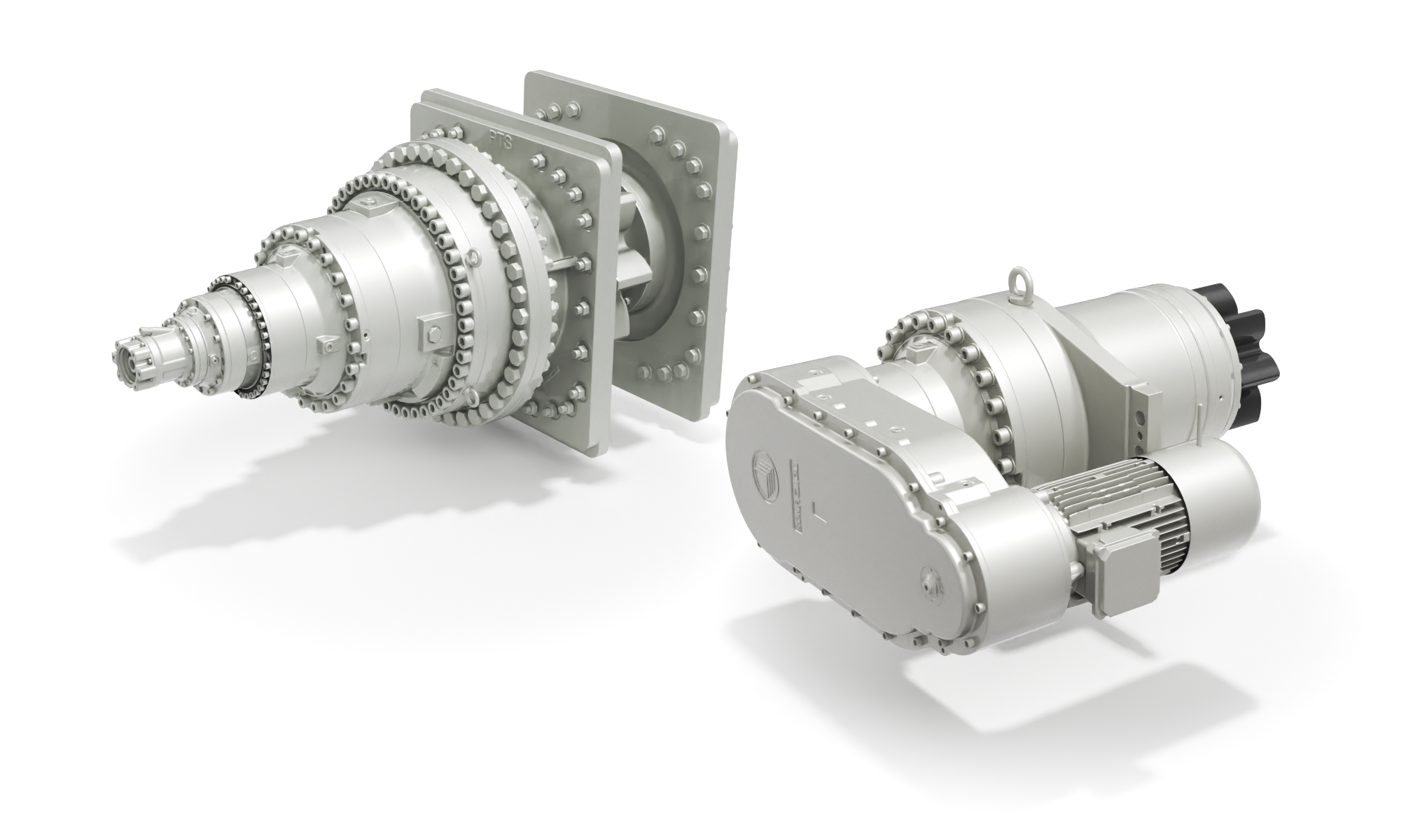

With these planetary gearboxes, Bonfiglioli offers the opportunity for operating the rack to raise and lower the entire hull. The units can be in-line or with a bevel gearbox to facilitate installation of the motor. They can be operated electrically or hydraulically, with or without a negative parking brake. They can be complete with output, with integrated torque arm for easy installation on the machine and with integrated pinion shaft with 50 or 100 toothing module, and large capacity bearing.

Specifications

Torque Range

Type
Torque (Nm)
  • 718T
    150000
  • 721T
    650000
  • 723T
    115000
  • MAX JACKING

    Up to 1,150,000 Nm
  • MAX HOLDING

    Up to 1,430,000 Nm
  • STORM HOLDING

    Up to 2,100,000 Nm
  • Key benefits

    Parking brakes
  • Applicable motors

    Piston hydraulic motors
    Electric motors IEC

Applications

Scroll

Download Documents

Brochure Marine & Offshore

Brochure Marine & Offshore
