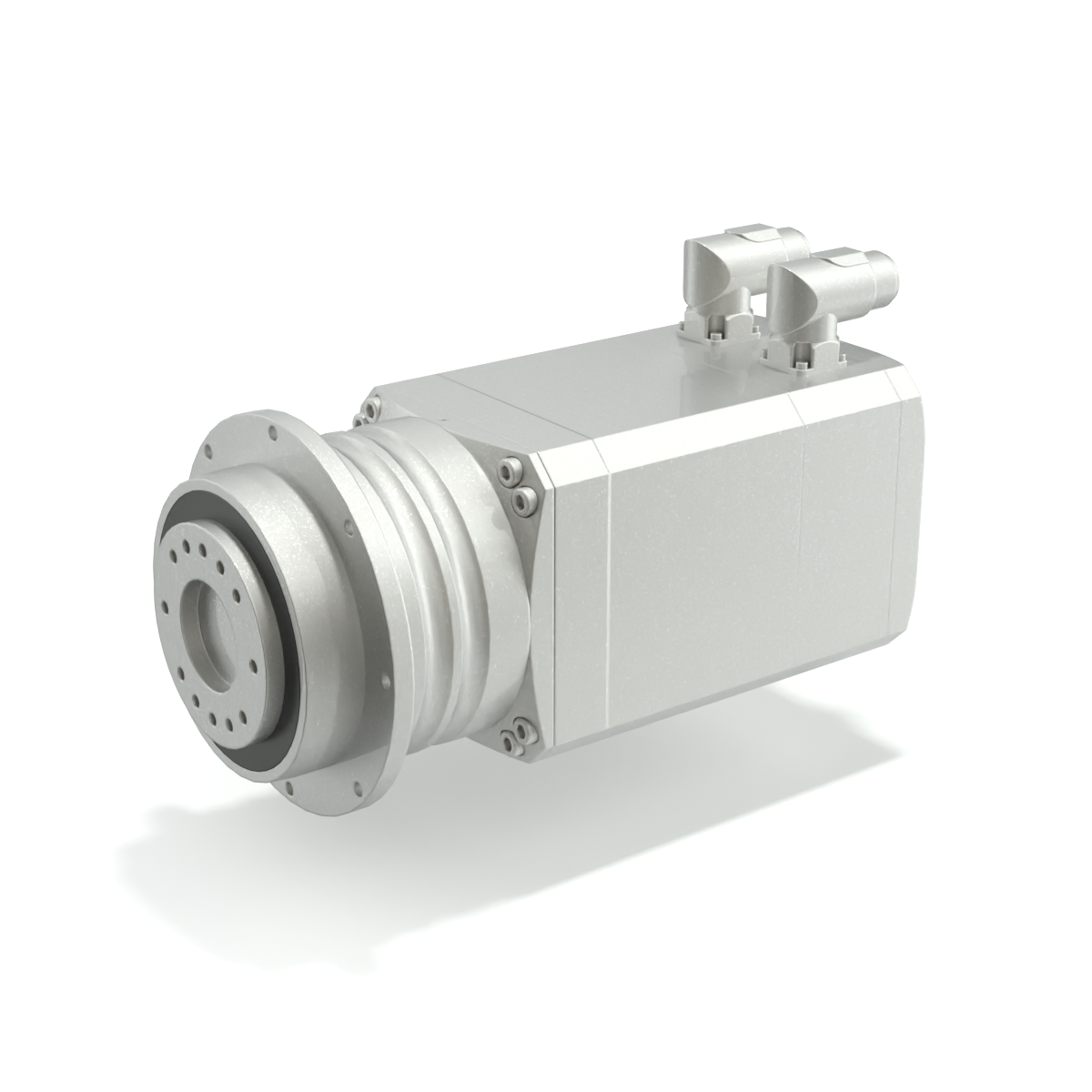

    BMS Series

    Using an integrated solution, rather than a traditional gearhead/motor combination, the BMS series offers revolutionary space-saving machine design, a wider range of options and a higher performance due to the synergies between permanent magnets, synchronous motors and precision planetary gearboxes technologies. With very reliable tested features, the customer has the flexibility to select three types of performance with an excellent combination variants low overspeed, medium overspeed and high overspeed. All these variants have been designed to optimize the output needed with the benefits of supreme compactness, highest torque / input speed and optimization of drive size. These excellent benefits are achieved using 5 gearboxes sizes and 14 motors in combination with 3 types of Yarn Winding machines. Excellence and reliability allow continuous duty to run your application safely.

    Key features

    Specifications

    Torque range
    177 ... 10,620 lb-in
    Temperature sensor
    PTC
    KTY 84-130
    PT1000
    Torque range
    45 ... 1,200 Nm
    Degree of protection
    IP65
    Certifications
    CE
    Brake options
    Holding brake (optional)
    24 Vdc
    Lubrication
    Life lubricated
    Optionally food grade oil
    Operation
    Continuous duty
    Cyclic operation

    Specifications

    • Main options
      Additional flywheel (optional)
      0. 5 ... 70 (Kgm2 x 10-4)
    • Feedback
      • Resolver 2-pole resolver 8kHz & 10 kHz
      • Optical encoder EnDat single & multi-turn
      • Optical encoder Hiperface single & multi-turn
      • Capacitive encoder Hiperface single & multi-turn
    • Motors
      14 motors with 3 types of Yarn Winding machines
      3000 rpm; 4500; 6000 rpm
      065A; 065B; 082B; 082C; 102A; 102B; 102C; 118A; 118B; 118C; 145B; 145C; 170B; 170C

    Types & Powers

    Related

    BMD - Servomotors

    BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

    BCR Series

    BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

    iBMD Series

    iBMD can be controlled by a master or in standalone mode. It reduces both cable and electrical cabinet costs. Total unit size is reduced by more than 35% compared with a classic servo drive solution

    AGILE Series

    The Agile Series of inverters by Bonfiglioli sets new standards in technology for a broad range of users. Agile inverters are particularly suited for the food & beverage, textile, wood, packaging and ceramic industries, where they can be used in a variety of medium complexity automation processes.
    Applications

    Drilling & tapping machine

    CNC processing machine

    Flat table processing Machine

    Point to Point CNC processing Machine

    Spindle axis

    Door CNC Processing Machine


    Filling, Dosing, Capping & Labelling Machines

    From bottle filling to labeling, the primary packaging phase poses a number of challenges, including speed, precision and synchronization. We can provide state-of-the-art integrated solutions that fit customers’ needs. Our low-backlash precision gearboxes, highly dynamic, high-efficiency servo motors and drives are an excellent combination for these applications.

    Flow Pack Machine (HFFS - VFFS)

    The Flow Pack (HFFS) process involves automatic machines working at a high rate of production. Compact, modular, dynamic, high-precision solutions allow us to supply drive and control systems for both Horizontal Fill Form Seal (HFFS) and Vertical Fill Form Seal (VFFS) machines that provide proper conveyor transfer of material to an unwinder for sealing with a single roll of film.

    Bottle washer machine

    Hygiene, product safety, space efficiency and reliability are key features in bottle washing machines. Bonfiglioli understands customers' needs well and has developed specific products with enhanced protection and features to meet specific environmental requirements. Our solutions meet these requirements outstandingly and supply machine manufacturers with an extremely broad, dedicated selection of gearmotors.
