S2U IP66

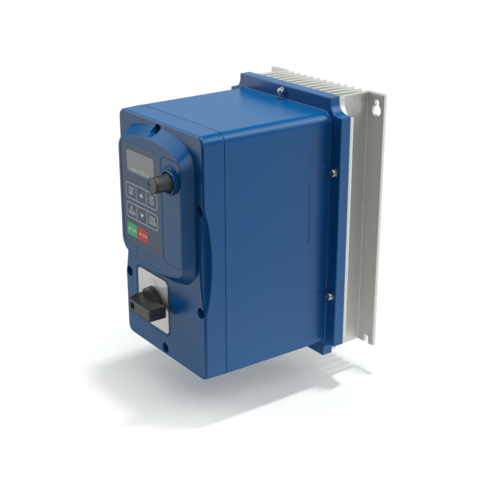

The compact S2U IP66 plug & play inverter for single-phased 230-volt networks and three-phase 400-volt networks comes in three sizes with motor power ranging from 0.4 kW to 18.5 kW. The new S2U IP66 inverter series is particularly suited to harsh environment applications. The heat sink is specially designed for extreme environmental conditions such as dust, humidity, and cleaning chemicals.

Key features

Specifications

Degree of protection

IP66 (EN 60529)
NEMA 4X

Rated speed

0 ... 599 Hz

Certifications

UL508c

Conformity

Mounting options

Cabinet or field mounting for all sizes

Motors

Asynchronous AC motors

Specifications

Main options
• Optional accessories like brake
resistor, mains chokes, mains filters
• Optional Connection set for connection to PC
Power supply & Power range
• S2U230T-..(F) IP66: 0.4 - 2.2 kW /single-phase 200 - 240V (+10%- 15%) / 50 or 60 Hz
• S2U400T-..F IP66: 0.75 - 18.5 kW/ three-phase 380 - 480V (+10%- 15%) / 50 or 60 Hz
Hardware features
- 5-digit display
- Brake resistor terminals
- Reference potentiometer
- 1 analog input (V or I selectable)
- 6 digital inputs (programmable multifunction)
- 1 digital output (programmable)
- 1 analog output (voltage linear)
- 2 relay outputs (programmable multifunction)
- 1 RJ45 terminal for communication with PC or Modbus network
Motor options
Motor Control(open loop):
• Asynchronous AC motors

Types & Powers

Types & powers (S2U230S)

Type	Power (kW)
S2U230S-03 F IP66 (1)	0.40
S2U230S-07 F IP66 (1)	0.75
S2U230S-11 F IP66 (2)	1.50
S2U230S-13 F IP66 (2)	2.20

Types & powers (S2U400T)

Type	Power (kW)
S2U400T-07 F IP66 (1)	0.75
S2U400T-11 F IP66 (1)	1.50
S2U400T-13 F IP66 (2)	2.20
S2U400T-18 F IP66 (2)	3.70
S2U400T-19 F IP66 (3)	5.50
S2U400T-21 F IP66 (3)	7.50
S2U400T-23 F IP66 (3)	11.00

Types & powers (S2U400T)

Type	Power (kW)
S2U400T-25 IP66 (3)	15.00
S2U400T-27 IP66 (3)	18.50
