    TR

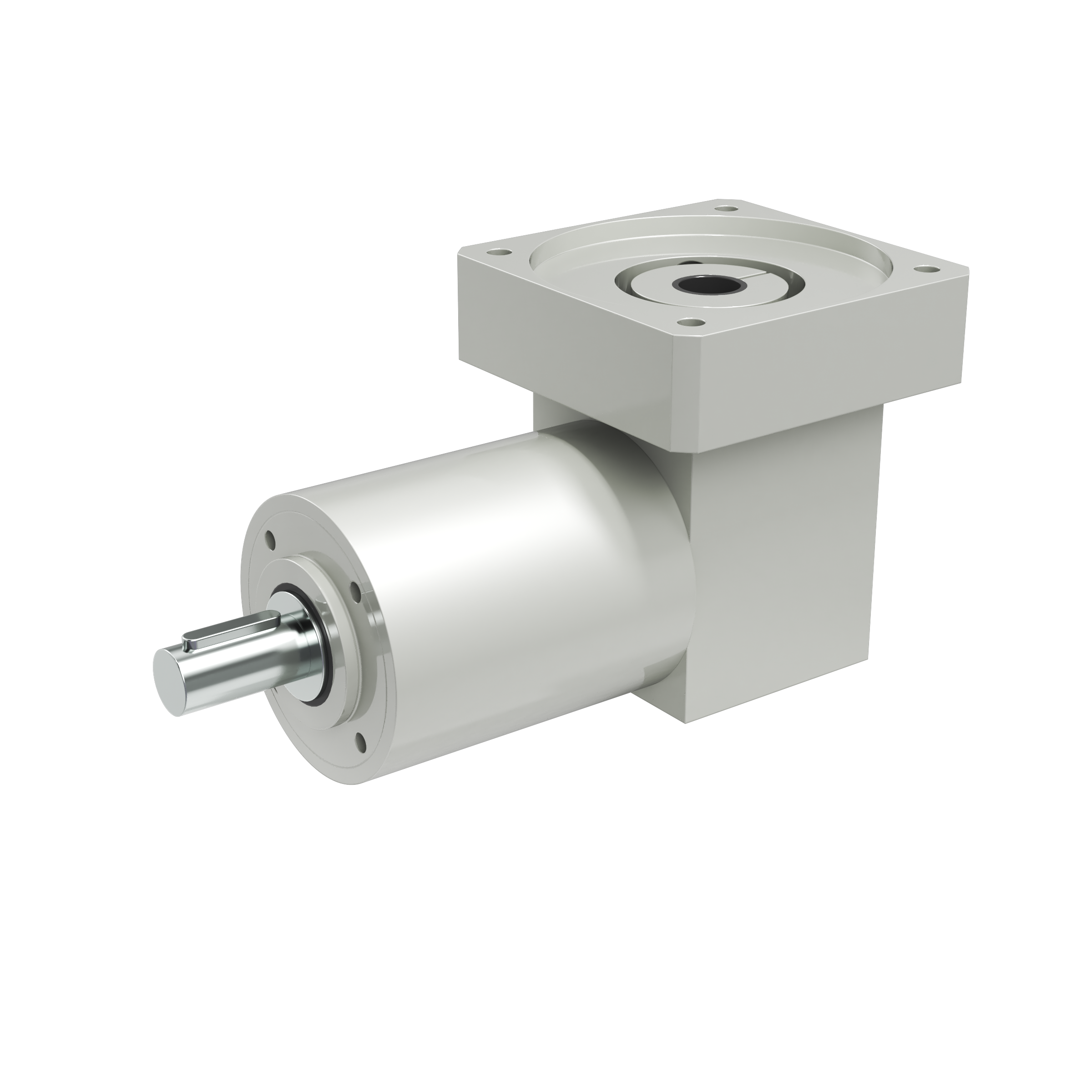

    In addition to optimal performance, very low backlash, high overload capacity and easy installation, the TR series is characterized by great modularity due to multiple design configurations, wide ratios range, two backlash classes and different optimized lubrications, ensuring high reliability and the most fitting response to different applications requirements.

    Key features

    Specifications

    Torque range
    106.2 ... 10,620 lb-in
    Torque Range
    Sizes
    053, 060, 080, 105, 130, 160, 190
    Gear ratios
    3 ... 1000
    Max radial force
    500 ... 14,000 N
    Degree of protection
    IP65
    Input speed
    Up to 6,000 min<sup>-1</sup>
    Torsional stiffness
    1 ... 130 Nm/arcmin
    Lubrication
    Standard; Food grade
    Output
    Smooth keyless shaft; keyed shaft

    Specifications

    • Main options
      coaxial
      with input right-angle
      with output right-angle
    • Torsional backlash
      In-line
      • 1 stage: less than 3 arcmin
      • 2 stages: less than 3 arcmin
      • 3 stages: less than 5 arcmin
      Right-angle "K" / "G" / "MB"
      • 2 stage: less than 3 arcmin
      • 3 stages: less than 3 arcmin
      • 4 stages: less than 5 arcmin
    • Input
      Motor adapter; Solid input shaft; Without motor adapter
    Related

    BMD - Servomotors

    BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

    BCR Series

    BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

    iBMD Series

    iBMD can be controlled by a master or in standalone mode. It reduces both cable and electrical cabinet costs. Total unit size is reduced by more than 35% compared with a classic servo drive solution
    Applications

    Drilling & tapping machine

    CNC processing machine

    Flat table processing Machine

    Point to Point CNC processing Machine

    Door CNC Processing Machine

    Vibration welding

    Infrared welding


    Flow Pack Machine (HFFS - VFFS)

    The Flow Pack (HFFS) process involves automatic machines working at a high rate of production. Compact, modular, dynamic, high-precision solutions allow us to supply drive and control systems for both Horizontal Fill Form Seal (HFFS) and Vertical Fill Form Seal (VFFS) machines that provide proper conveyor transfer of material to an unwinder for sealing with a single roll of film.

    Palletizing machines

    Last but not least, the tertiary phase includes both palletizing and wrapping machines to prepare the product for shipment. We provide solutions that can handle high speeds and precise movement, while stabilizing and properly aligning the material.


    Bottle washer machine

    Hygiene, product safety, space efficiency and reliability are key features in bottle washing machines. Bonfiglioli understands customers' needs well and has developed specific products with enhanced protection and features to meet specific environmental requirements. Our solutions meet these requirements outstandingly and supply machine manufacturers with an extremely broad, dedicated selection of gearmotors.

    Filling, Dosing, Capping & Labelling Machines

    From bottle filling to labeling, the primary packaging phase poses a number of challenges, including speed, precision and synchronization. We can provide state-of-the-art integrated solutions that fit customers’ needs. Our low-backlash precision gearboxes, highly dynamic, high-efficiency servo motors and drives are an excellent combination for these applications.

    Carton filling machines

    Secondary packaging involves machines that perform a variety of jobs, from building boxes, to placing products inside them, and finally closing them.
    Bonfiglioli knows the challenges of these applications and provides solutions to meet them all. From maximally space-saving precision gearboxes to inverters, our customers can rely on Bonfiglioli as full line supplier.

    Palletizing & Wrapping machines

    Tertiary packaging involves palletizing and wrapping machines that receive the filled boxes from the previous process and prepare them for final shipping.
    Bonfiglioli’s solutions for these applications meet the need for both high dynamics and precision. We provide solutions that ensure speed and precision when moving the finished product.
