Bonfiglioli Gear Solutions | Powering Durability in Road Construction

Keeping Your Road Construction Fleet Running Smoothly:

Bonfiglioli's Gear Solutions

The road construction industry is a tough one. Your equipment faces constant punishment: extreme weather conditions, abrasive materials, and relentless deadlines. Downtime due to breakdowns can cost you money, reputation, and slow down critical projects.

That's where Bonfiglioli comes in. For over 40 years, we've been a trusted partner to the road construction industry, providing reliable, high-performance gear solutions that keep your fleet running smoothly.

We understand the unique challenges of each application. Whether you're operating milling machines, road compactors, or road pavers, Bonfiglioli has the perfect gear for the job.

Here's a look at how our products can give your road construction equipment the edge, with technical specifications for each:

Travel Drives for Pavers, Milling Machines, and Compactors:

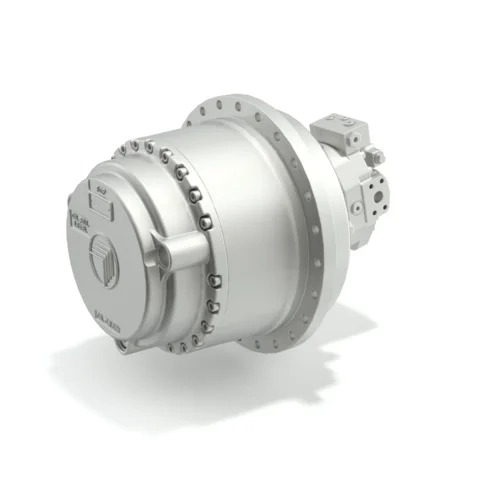

Our rugged 700C Series is designed to handle the toughest jobs.

Features: Compact, right-angle design, integrated high-efficiency planetary gear reducer, robust cast iron housing for maximum shock resista

Technical Specs:

Ratio range: 14 - 50 Nm (12.5 - 44 lb-ft)
Output torque: Up to 45,000 Nm (33,250 lb-ft)
Final shaft speed: Up to 4,000 rpm
Optional features: Mechanical lifetime seals, hydraulically released parking brake, fixed or variable displacement cartridge motors (including electric motor options).

Discover More

Drum Drives for Crushers, Screeners, Milling Machines, and Pavers:

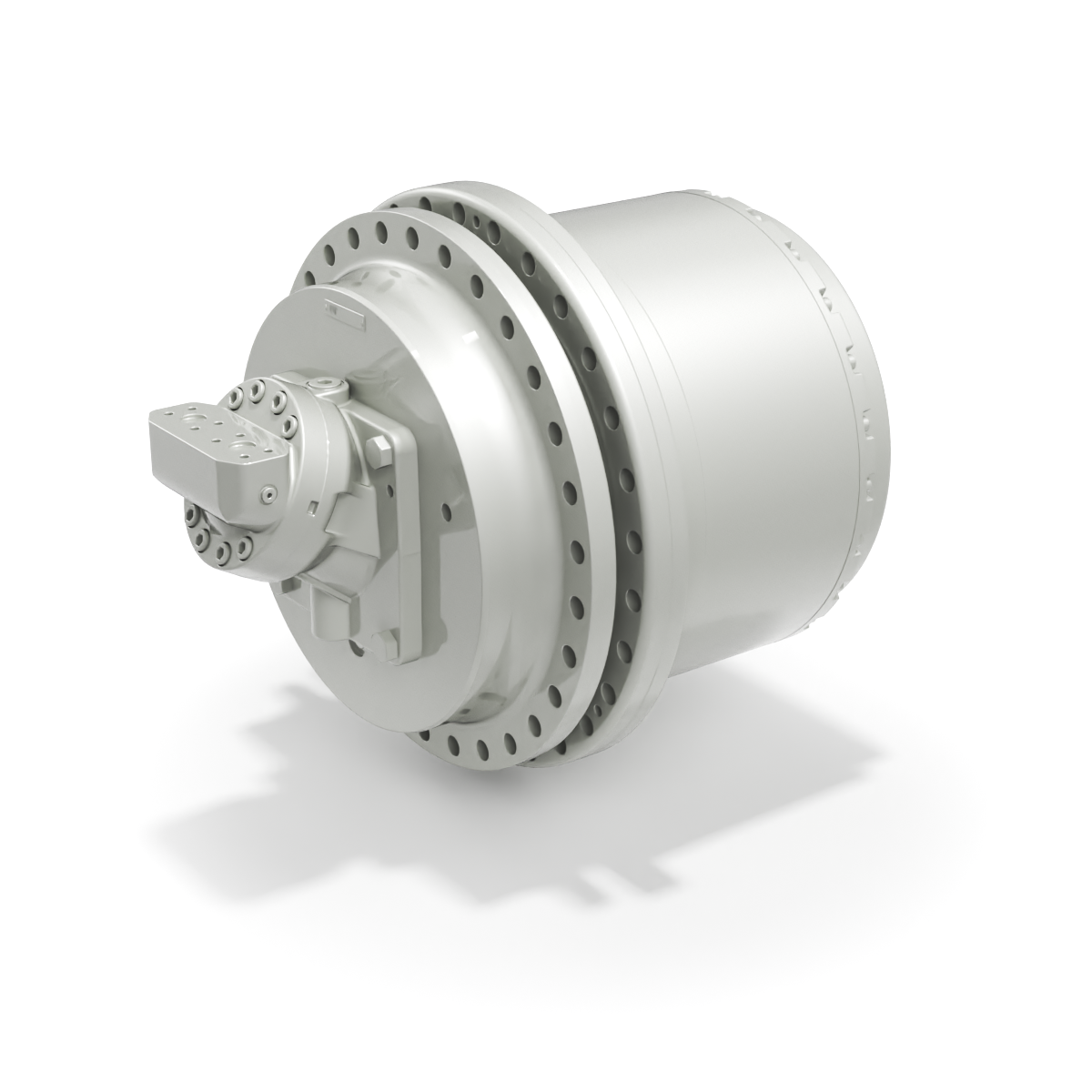

The F Series is perfect for powering a variety of equipment. Its compact size, high torque, and durable construction make it a reliable choice for demanding applications.

Features: Compact, two-stage planetary design with integrated hydraulic motor flange, option for mechanical disconnect.

Technical Specs:

Ratio range: 4 - 50 Nm (3.7 - 44 lb-ft)
Output torque: Up to 80,000 Nm (59,000 lb-ft)
Final shaft speed: Up to 4,000 rpm
Key options: Hydraulically released parking brake, high-pressure relief valves, two-speed shift function with external pilot control.

Discover More

Cutter Drives for Milling Machines:

Our 700C Series cutter drives are built for increased productivity and reliability. The dual-stage planetary design and integrated cooling system provide exceptional performance and extended lifespan, even in the harshest conditions.

Features: Dual-stage planetary reduction gearbox with integrated pulley support shaft, optimized housing design for improved lubrication, offset input option for increased cutting depth.

Technical Specs:

Ratio range: 14 - 45 Nm (12.5 - 40.5 lb-ft)
Output torque: Up to 48,000 Nm (35,400 lb-ft)
Final shaft speed: Up to 1,800 rpm
Integrated cooling system (optional)

Discover more

These are just a few of the ways Bonfiglioli can help you build stronger, lasting roads. Our gear solutions are designed to deliver maximum uptime, reduced maintenance costs, and a competitive edge in your construction projects.

Ready to learn more? Download our free brochures for detailed information on our entire range of road construction gear solutions, and discover how Bonfiglioli can help you keep your fleet running smoothly.

Discover More
