Travel drives

Wheel drives, travel & track drives

TRAVEL & TRACK DRIVES

Wheel drives

Products

600 Series
The Bonfiglioli 600 Series is the best solution when designing wheeled off-road machinery. With a compact design, high torque and load capacities, a negative multi-disk parking brake and an optional disengagement device to tow the vehicle in an emergency, these solutions precisely match the application requirements.

600WE Series
Bonfiglioli 600WE planetary drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. 600 Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:145 to satisfy the widest possible range of needs. The gearbox is coupled with a low-voltage induction motor (BT Series), specially developed for traction power and control applications.

600WT Series
Bonfiglioli 600WT wheel drives are the best choice for wheeled agricultural equipment, such as self-propelled agricultural sprayers. This solution is the perfect combination of proven mechanical parts, with a new, integrated 68cc variable hydraulic motor, especially developed for closed-loop, highly demanding applications.

600Y Series
When designing a latest-generation pneumatic tyred roller machine, integration of the unique 600 Y3 drive is the right choice for your vehicle. Flexible design simplifies installation on the machine frame.

600W0C Series
600W0C units are typically applied in the rear section of 3- and 4-wheel counterbalanced forklifts. They can be axles or steering units for twin wheels. Depending on the steering unit model, anti-vibration parts can be included, and they serve as support for fixing brackets. The hydraulic steering guarantees a high steering angle to minimize the vehicle's steering radius and allow the truck to move easily in narrow aisles. Depending on the customers' needs, it is possible to customize the unit's main dimensions and other characteristics, such as adding a potentiometer to read the steering angle.

600D Series
Bonfiglioli supplies versatile, low-noise drives coupled with electric motors for all-electric, battery-powered vehicles such as urban passenger cars, commercial vehicles and delivery trucks. This solution ensures a more energy-efficient operation and extended autonomy from the battery thanks to optimized, low backlash helical gears and high-speed bearings. The Bonfiglioli 600D Series of drives is extremely lightweight thanks to cast aluminum casings developed with Bonfiglioli's extensive process expertise. The 600D drives allow vehicle manufacturers to satisfy even the toughest restrictions on gross vehicle weight. They are complemented by a range of electric motors, inverters and matched mechanical joints and shafts to provide vehicle OEMs with complete powertrain solutions.

600F Series
Bonfiglioli supplies high-efficiency, low-noise planetary axles and drives with integrated high performance electric motors and low maintenance braking systems for Class 1 material handling vehicles. Typical applications include 3- and 4-wheel counterbalance lift trucks and ground support equipment. Bonfiglioli electric powertrains are fully tested in the factory and guarantee reduced energy consumption. This, in turn, means longer battery operating times, extended service intervals and lower cost of ownership. Bonfiglioli 600F Series drives are complemented by a range of idle steering systems based on axles or steering units, depending on the number of wheels on the vehicle.

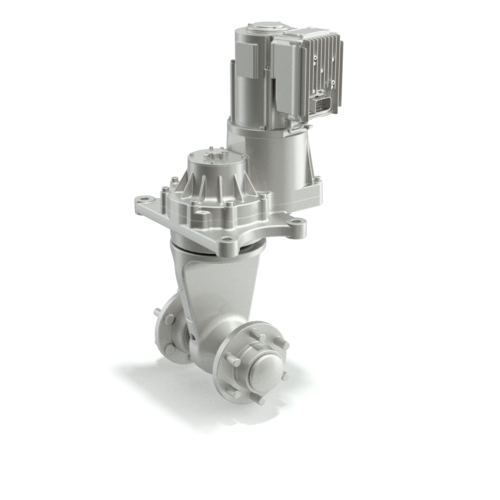

El Series
Bonfiglioli EL powertrains are a perfect match for the most demanding warehousing applications (Class 2 and Class 3). Warehousing trucks require high maneuverability in tight spaces, provided by drives like the EL series drives, with the smallest operating radius in vertical arrangements.

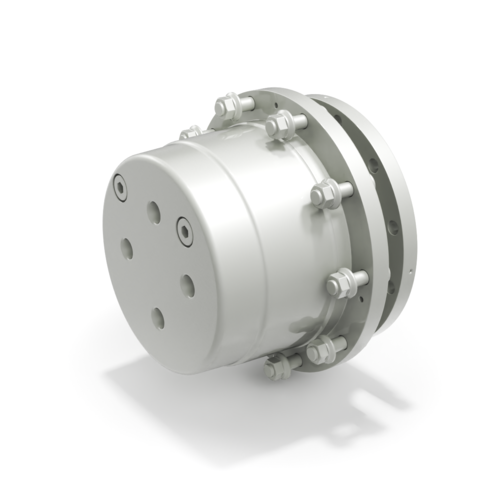

FR Series
The FR Series is the best solution when designing large wheeled off-road machinery. With a compact design, high torque and load capacities, a negative multi-disk parking brake and an optional disengagement device to tow the vehicle in an emergency, these solutions precisely match the application requirements.

600 Series for AWD graders
When designing an all-wheel drive grader, the integration of the 600 series, developed for this high speed application, is the best possible choice for your vehicle. The solution includes a high-speed clutch device.
Travel & track drives

Products

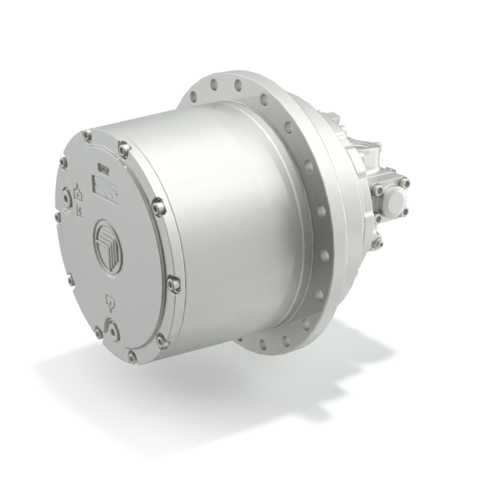

700CK Series
Extremely compact, lightweight, efficient and smooth to operate, 700CK Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Kayaba.

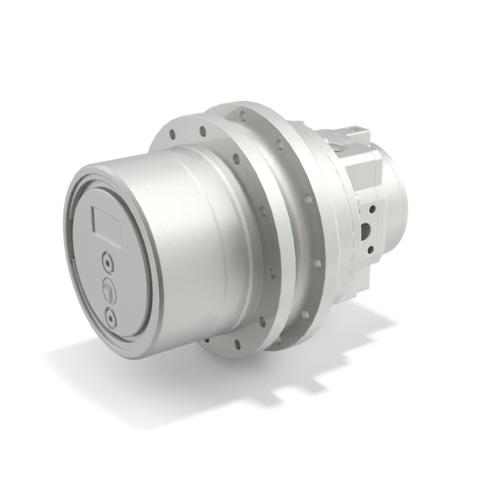

700 XT
Bonfiglioli 700 XT track drives excellently combine proven mechanical systems with ground-breaking hydraulic components, making them the best choice for closed-loop applications and demanding construction equipment machines, such as compact track loaders (5.5 to 7.5 tons), small dozers (5.5 to 7.5 tons) or pavers (12 to 15 tons).

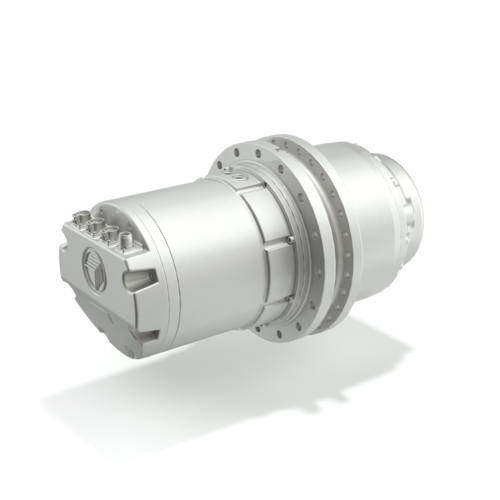

700 CE
Bonfiglioli 700CE planetary drives coupled with a high-power density electric motor are specifically designed for high-voltage hybrid powertrain systems. Many years of installation on crusher machines is concrete proof of the efficiency of these electric drive solutions. An integrated, maintenance-free IPM (internal permanent magnet) electric motor is included, giving significant benefits in terms of dimensions and efficiency. The motor design is flexible from a cooling type standpoint: 700CE series drives coupled with air-cooled motors are designed to be installed on all kinds of crushers and screeners, weighting up 60 tons and with a max. speed of 3.5 to 4.0 km/h. Because they use the same motor with liquid cooling, some of these solutions can also be applied to other types of new-generation off-highway tracked machinery in the construction industry. For outdoor use on rough soils, the motor protection class is IP67. The overall length of the SAHR brake, is particularly limited, close to the size of a hydraulic motor.

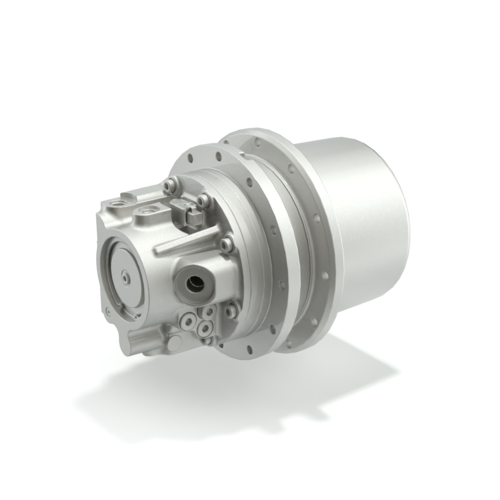

700CT Series
Extremely compact, lightweight, efficient and smooth to operate, 700CT Series track drives are powered by integrated axial piston hydraulic motors.

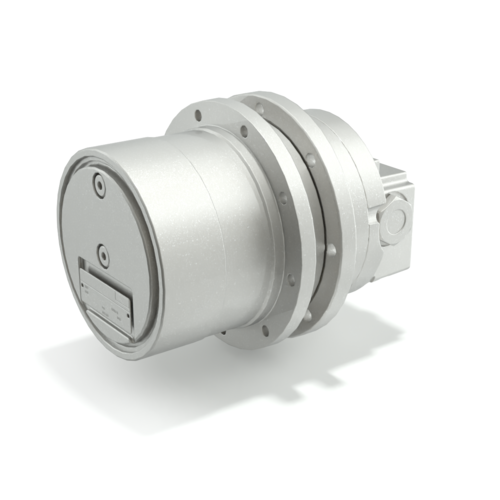

700CP
Extremely compact, lightweight, efficient and smooth to operate, 700CP Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Poclain hydraulics.

700C Series
Bonfiglioli 700C series units are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.

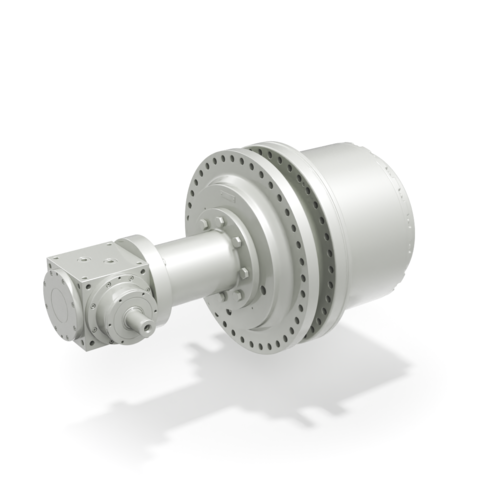

FP Series
The FP Series are perfectly suitable with any crawler, large excavators and milling machines. Thanks to compact, rugged design, high torque and load capabilities, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems. Different disengagement systems are available on demand for all the sizes.

F Series
The F Series is perfectly suited to any crawler and milling machine. Thanks to compact, rugged design, high torque and load capabilities, these solutions are the best possible option for thes machines. All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems. Different disengagement systems are available on demand for all the sizes.
