Customized solutions for Construction machineries:
Bonfiglioli’s R&D makes the difference for P-Cube Equipment Pvt. Ltd.

Co-engineering with P-Cube Equipment for Construction Equipment & Machinery

P-Cube Equipment Pvt. Ltd. is a leading engineering house based in Vadodara, renowned for manufacturing high quality Construction Equipment such as Bar Cutting Machines, Bar Bending Machines, Suspended Rope Platforms, Multifunctional Material Hoists, Passenger Material Hoists and more.

Since inception in 2019/2020, P-Cube has been using Bonfiglioli Drives in their machinery. It has been a close association, strengthened by Bonfiglioli’s strong R&D capabilities. We are P-Cube’s preferred partners for the flexibility, quality and customization we bring to the table. Bonfiglioli engineers work closely with P-Cube’s team to tailor solutions for the competitive edge.

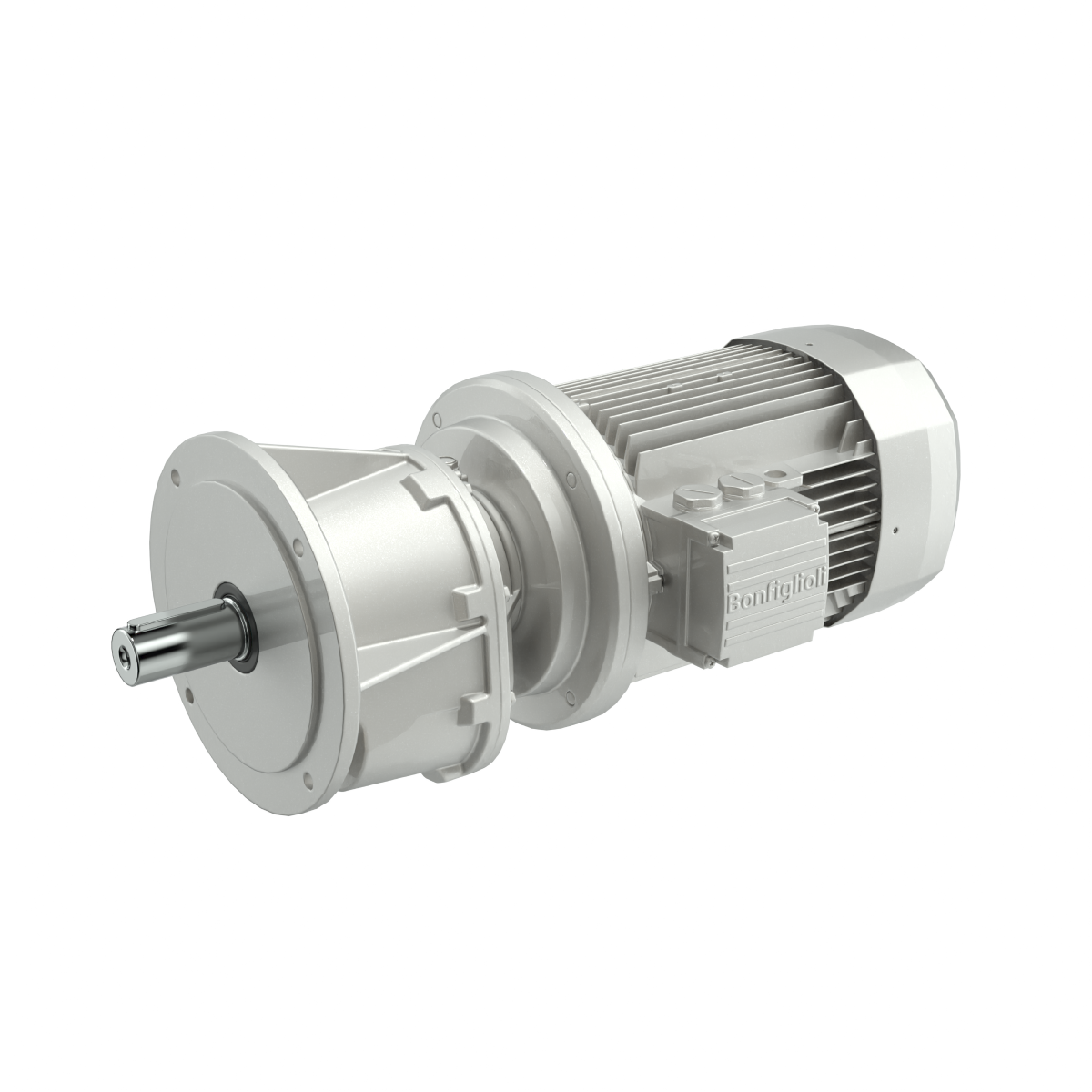

Helical In-line AS Series Gearmotors

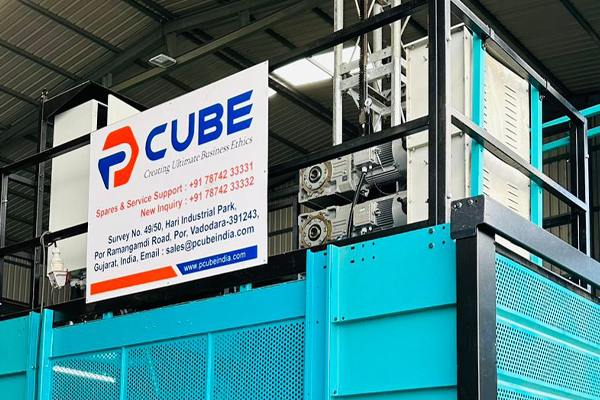

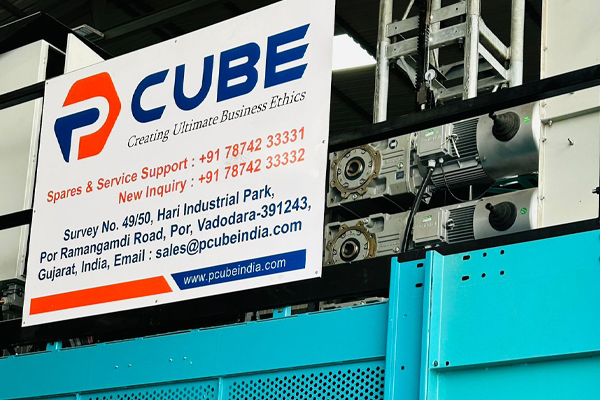

Bonfiglioli’s Helical In-line AS Series Gearmotors are an ideal choice for P-Cube’s Tower Hoists.

AS Series is a highly dynamic, energy-saving solution, with a wide output speed selection range. The Gearmotors require minimum mounting space. Reduced backlash and torque range of 50 to 12,000 Nm makes this Series a bestseller for Bonfiglioli. In continuous applications, where reliability and low maintenance are key factors, AS Series always rises to the challenge.

Key features

Modularity
Space effective
High efficiency
Quite operation
Gears in hardened and case-hardened steel
Bare aluminium housing for sizes 16 and 20.
Larger frame sizes come in sturdy cast iron housings
Input and output shafts from high grade steel.
Wide ratio ranges (3 stages)
Input flange suitable for IEC motor
Foot and Flange mounting options available

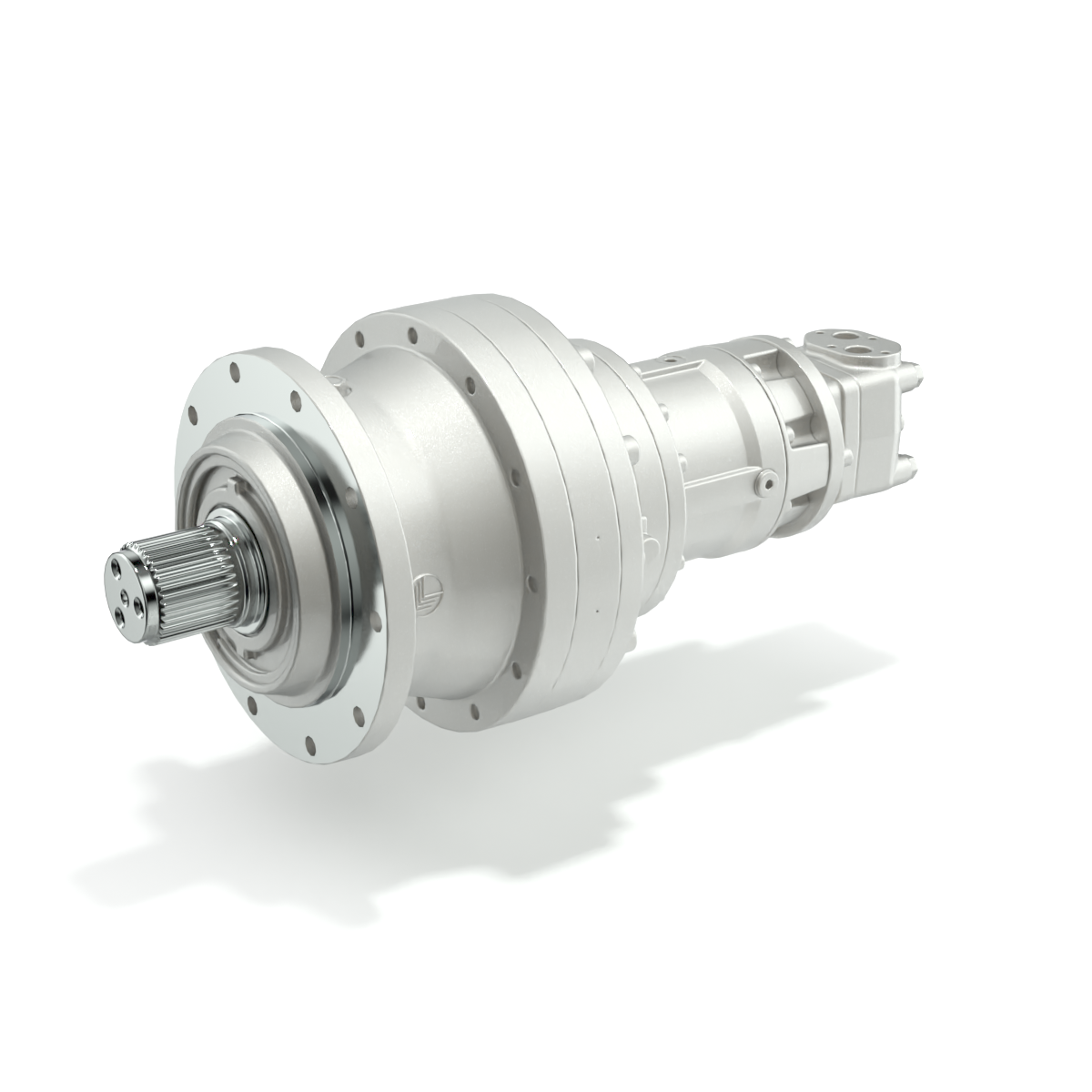

300 Series Planetary Gearbox

P-Cube uses Bonfiglioli's 300 Series of Planetary Drives for their Bar Bending machines.

Bonfiglioli’ s 300 Series is an outstanding solution for all Medium and heavy-duty applications where compactness is not an option. Thanks to its modular design, the 300 Series can be customized to match an extremely wide range of applications. Bonfiglioli’ s expertise in planetary technology ensures high-quality product design and manufacturing procedures. The 300 Series operates without unwanted downtime even in the harshest environments. This planetary gearbox achieves top-class flexibility thanks to several outputs, as well as input configurations available for all 20 sizes. The 300 Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors can be coupled with 300 Series gearboxes, providing our customers a complete solution.

Key Features

Highly transmissible torque / weight ratio
High shock resistance
Wide range of options and accessories
Electric and hydraulic motor compatible
Built-in cooling fan
ATEX version 2G/2D

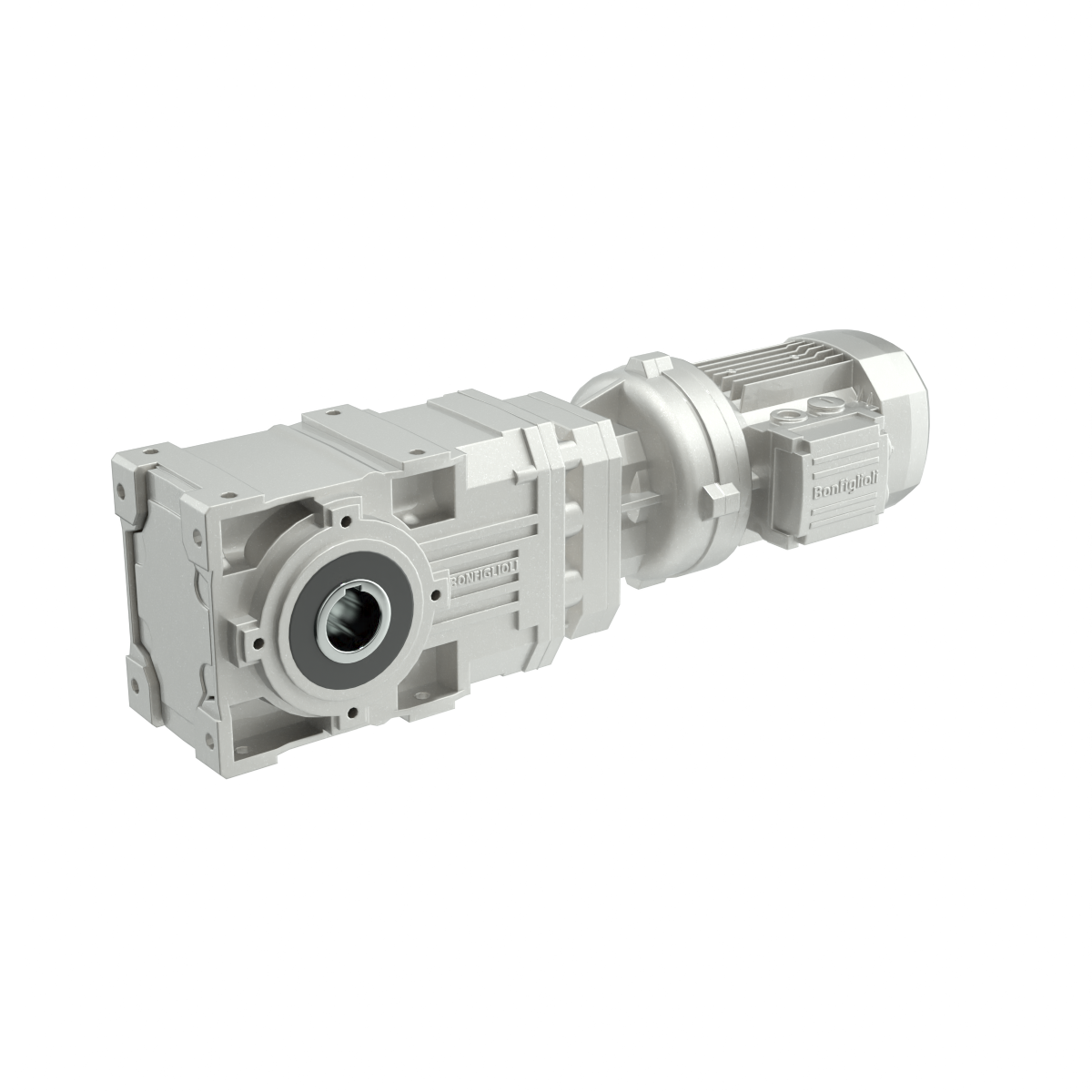

A Series Helical Bevel Gearmotors

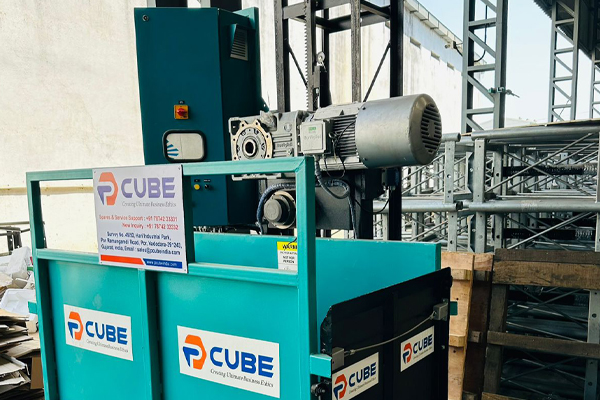

This series finds application in P-Cube's Multifunctional Material – Passenger and Material (PM Hoist) Hoist.

The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. It is compact and has 3 mounting planes on housing The A Series can be coupled with a wide range of electric motors entirely manufactured by Bonfiglioli which are asynchronous IEC motors (BE-BX), servomotors (BMD) and reluctance motors (BSR). Medium and larger sizes are supplied with SG Iron housing which offers better strength to weight ratio

Key Features

Right-angle input-output
Compact motor coupling
Servomotor coupling
Wide ratio range (4 stages)
ATEX gearbox for explosive environments 2G/2D
Planetary 300 Series combined version
Taconite Seals can be supplied as option for A70-190

Building strong relationships with customization and quality.

Mr.Pravin Patel
Partner/Director

P-Cube Equipment is happy with Bonfiglioli’s range of In-Line Helical Gearmotors, Helical Bevel Gearmotors and Planetary Gearboxes – and has appreciated the product quality and reliability. Bonfiglioli’s application support and prompt delivery have made Bonfiglioli the preferred partner for P-Cube.

“Bonfiglioli’s eagerness to co-engineer customized solutions for us is a huge advantage! Their flexibility and collaborative approach are appreciated. Bonfiglioli’s Customer Application Engineering team always supports us in design and selection of the optimal Drive solution.”
