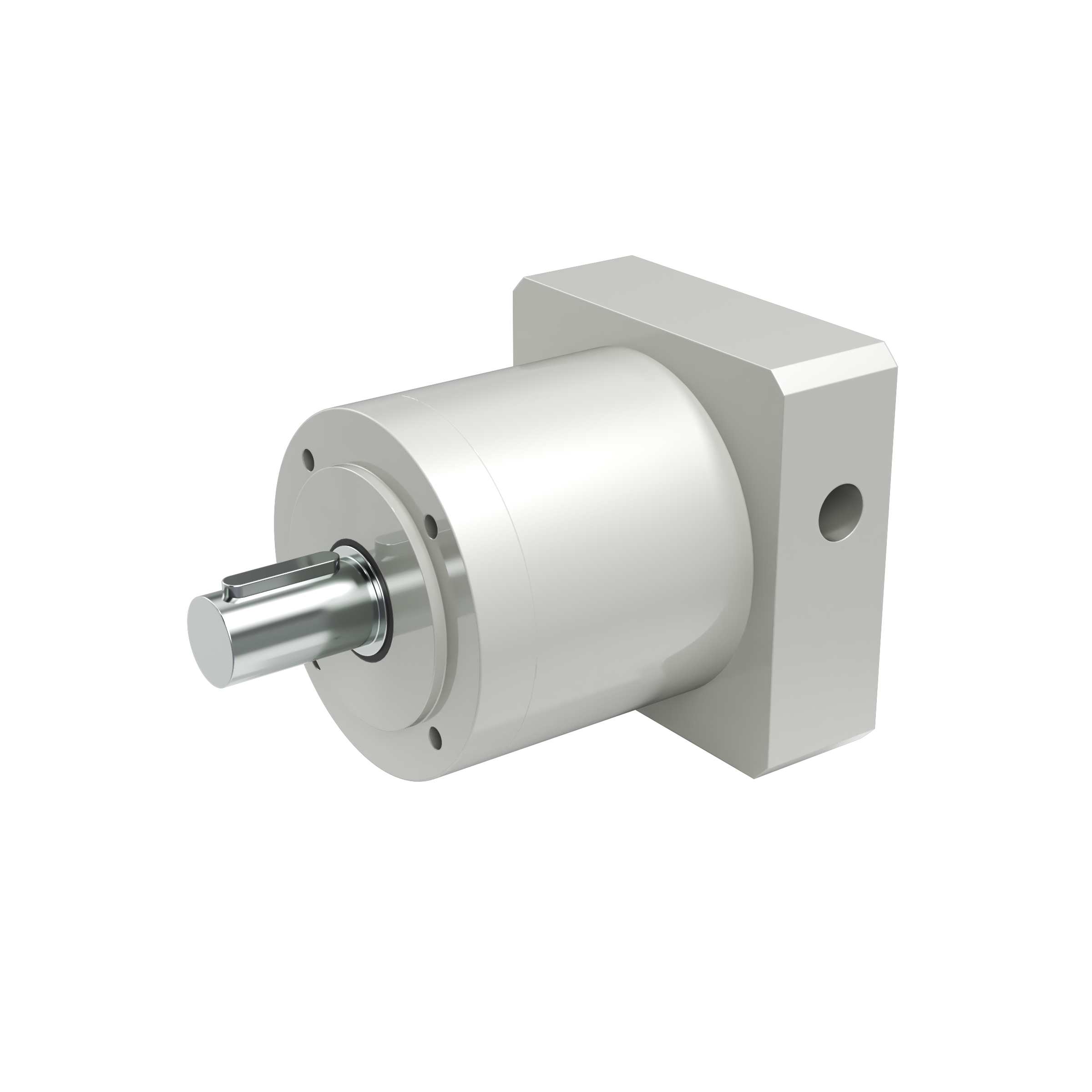

In-Line Precision Planetary Gearboxes, MPE Series

MPE

The MPE series offers a cost-effective solution for applications that require medium levels of positioning accuracy. It offers high flexibility in terms of sizes, ratios and mounting configurations for a variety of applications requirements. The output design in line with market standards ensures great compatibility for easy retrofits and a high level of freedom in projects development.

Key features

Specifications

Torque range

44.3 ... 2,655 lb-in

Torque Range

Sizes

040, 060, 080, 120

Gear ratios

• 1 stage: 3 ... 10
• 2 stages: 9 ... 100

Max radial force

220 ... 2,000 N

Degree of protection

IP54

Input speed

Up to 6,000 min-1

Torsional backlash

0.8 ... 25 Nm/arcmin

Lubrication

Standard; Food grade

Output

Smooth keyless shaft; keyed shaft

Specifications

BMD - Servomotors

BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

BCR Series

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

iBMD Series

iBMD can be controlled by a master or in standalone mode. It reduces both cable and electrical cabinet costs. Total unit size is reduced by more than 35% compared with a classic servo drive solution

BMI Series

The BMI offers a complete cost effective automation solution which is fully customizable to suit customers' needs. Combined with a Bonfiglioli drives system, the BMI series is a powerful solution dedicated to a wide range of applications.

Applications

Combing

The comber machine represents a crucial step in the process to obtain high quality yarns. Bonfiglioli offers high-performance IP65 asynchronous motors in combination with Active Cube or Agile frequency inverters, which ensure optimally coordinated combing movements for a smooth, controlled fiber treatment to achieve effective parallelization of fibers, straightening of curls, and removal of neps and residual impurities.

Drilling & tapping machine

CNC processing machine

Flat table processing Machine

Point to Point CNC processing Machine

Spindle axis

Door CNC Processing Machine

Vibration welding

Infrared welding

Lifting Force table

Extruders

Automatic storage

We supply our customers with complete solutions that guarantee the highest possible precision, efficiency and energy optimization for automatic storage applications. From the inverter to the drives, Bonfiglioli is a one-stop company that understands and able to face today’s market challenges.

Filling, Dosing, Capping & Labelling Machines

From bottle filling to labeling, the primary packaging phase poses a number of challenges, including speed, precision and synchronization. We can provide state-of-the-art integrated solutions that fit customers’ needs. Our low-backlash precision gearboxes, highly dynamic, high-efficiency servo motors and drives are an excellent combination for these applications.

Smart conveyors

Smart conveyors are key elements that drive the packaging process from beginning to end. Our drives provide smooth, quiet operations and, thanks to our inverters, our solutions provide unsurpassed control of conveyor speed and motion.

Flow Pack Machine (HFFS - VFFS)

The Flow Pack (HFFS) process involves automatic machines working at a high rate of production. Compact, modular, dynamic, high-precision solutions allow us to supply drive and control systems for both Horizontal Fill Form Seal (HFFS) and Vertical Fill Form Seal (VFFS) machines that provide proper conveyor transfer of material to an unwinder for sealing with a single roll of film.

Palletizing machines

Last but not least, the tertiary phase includes both palletizing and wrapping machines to prepare the product for shipment. We provide solutions that can handle high speeds and precise movement, while stabilizing and properly aligning the material.

Carton filling machines

Secondary packaging involves machines that perform a variety of jobs, from building boxes, to placing products inside them, and finally closing them.
Bonfiglioli knows the challenges of these applications and provides solutions to meet them all. From maximally space-saving precision gearboxes to inverters, our customers can rely on Bonfiglioli as full line supplier.

Downloads

Catalogues
Product Catalogue – Precision Planetary Gearboxes & Gearmotors-TIR

Download

Catalogues
Product Range Catalogue- Mechatronic Drives & Solutions

Download

Other files
USER-MANUAL_PRECISION-PLANETARY-GEARBOXES-&-GEARMOTORS_TIR

Download
