Engineering Solutions for Wastewater Treatment: A Technical Deep Dive

The Hidden Challenges of Wastewater Processing

In the complex world of wastewater treatment, engineers face a multitude of technical challenges that demand robust, reliable solutions. This article explores these challenges through an engineer's lens and highlights how Bonfiglioli's advanced gearbox technology addresses them.

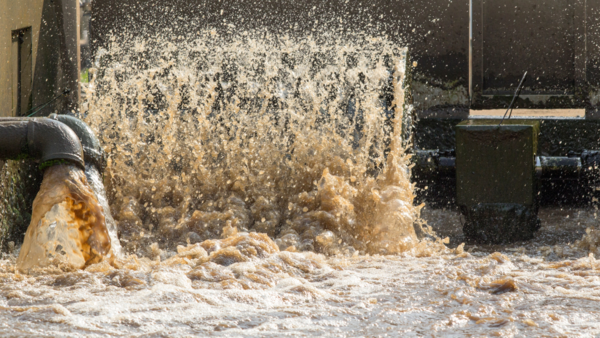

    • Sudden flow variations can create torque spikes up to 250% of nominal load.

    • Risk of catastrophic equipment failure and extended downtime.

    • Process stability and treatment efficiency can be compromised.

    • Extended idle periods may require high peak loads during startup

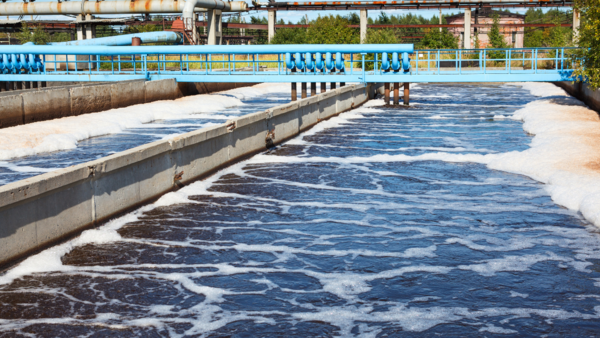

    • Exposure to H2S gas with concentrations up to 100 ppm.

    • Abrasive particles in grit chambers accelerate wear.

    • Chemical attacks from varying pH levels (6.5-8.5).

    • Outdoor installations face exposure to rain, wind, snow, and sunlight

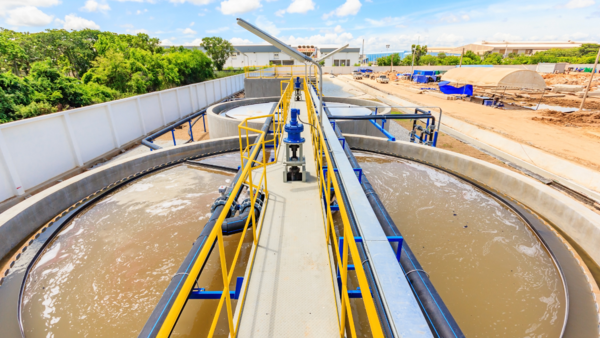

    • Average plant energy consumption ranges from 0.3-0.6 kWh per m³ of wastewater.

    • Gearbox efficiency directly affects overall plant energy use.

    • Solutions need to minimize power loss under varying load conditions

    • Typical setups face 30-40% less installation space than ideal.

    • Compact designs are necessary without performance compromises.

    • Accessibility for maintenance in confined spaces is critical

Engineered Solutions: Technical Specifications and Applications

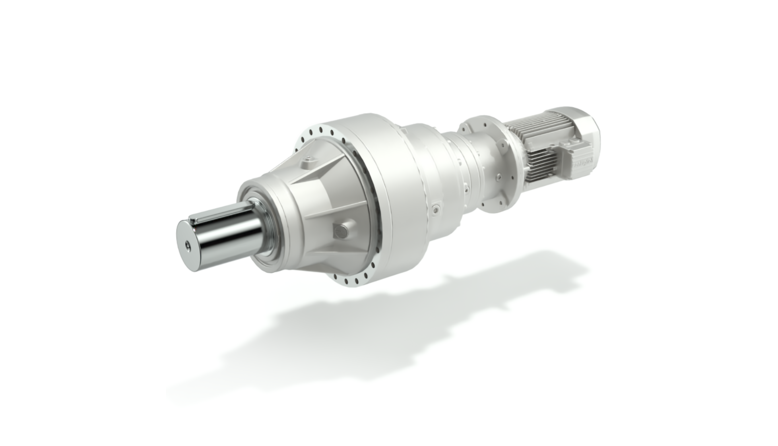

The 300M Series
Planetary Gearbox

Key Specifications:

  • Torque Range: 1,250 - 1,287,000 Nm.

  • Gear Ratios: 3.4 - 2,916.

Engineering Advantages:

  1. Shock Load Protection:

    • Mechanical torque limiting with <5ms response time.

    • Automatic reset and load monitoring via integrated sensors.

  2. Compact Design:

    • Power density up to 220 Nm/kg.

    • Modular construction with multiple mounting configurations

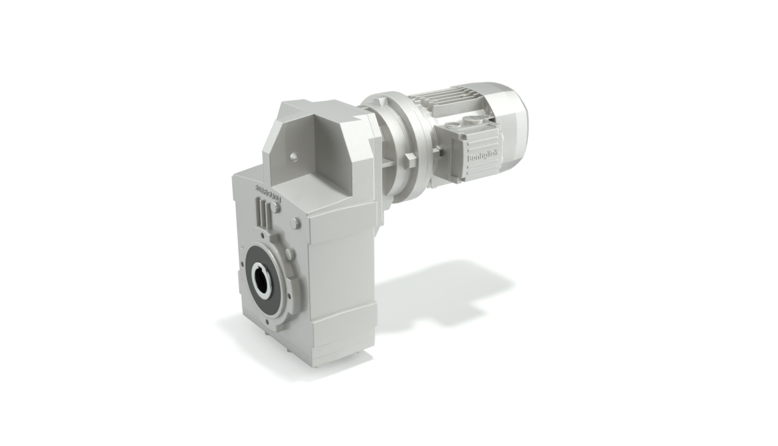

The F Series
Shaft Mounted Geared Motor

Technical Features:

  • Torque Range: 140 - 14,000 Nm.

  • Efficiency Rating: Up to 96%.

  • ATEX Certification for zones 1 and 21.

Application-Specific Benefits:

  1. Adaptability:

    • Universal housing design.

    • Hollow shaft with standard diameters.

    • Optional backstop for reverse rotation prevention.

  2. Maintenance Optimization:

    • Sealed-for-life bearings.

    • Standard oil fill for all mounting positions.

    • Mean Time Between Maintenance: >30,000 hours

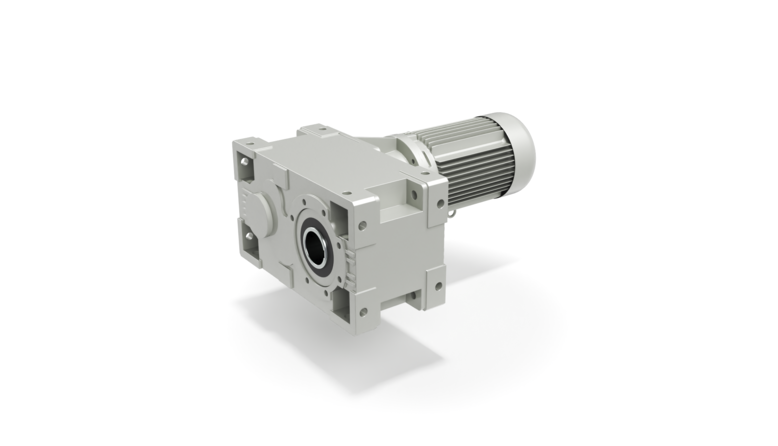

The HDP Series
Heavy-Duty Geared Motor

Performance Metrics:

  • Torque Range: 5,190 - 210,000 Nm.

  • Service Factor: Up to 2.5.

  • Bearing L10 Life: >50,000 hours.

Engineered Features:

  1. Thermal Management:

    • Multiple cooling options, including fan, water jacket, and oil-air heat exchangers.

    • Thermal rating: Up to 300 kW continuous duty.

    • Operating temperature range: -40°C to +50°C.

  2. Load Handling:

    • Reinforced taper roller bearings.

    • Drop bearing output designs.

    • Optional drywell sealing systems

Engineering Considerations for Selection:

In wastewater treatment, the difference between success and failure often lies in the details of power transmission system selection. Bonfiglioli's range of solutions, backed by extensive engineering expertise, ensures each challenge is met with a precisely engineered response. By prioritizing robust design, energy efficiency, and long-term reliability, our gearboxes empower engineers to create and maintain wastewater treatment systems operating at peak performance—day after day, year after year.

Ready to optimize your wastewater treatment operations? Contact Bonfiglioli’s experts today to discover the right solutions for your specific application.
